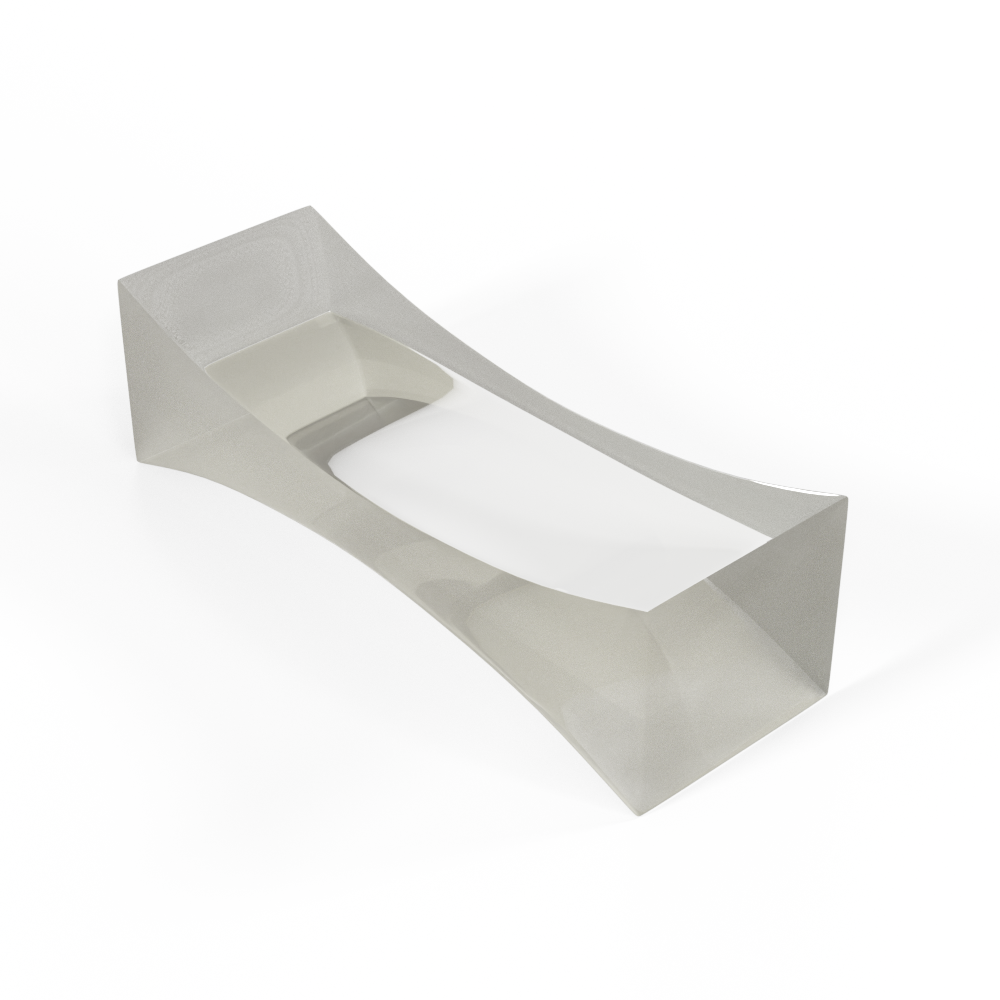

Fused quartz Biconcave cylindrical lens


  • Optical double concave cylindrical lens is also widely used in high-power laser system and synchrotron radiation beam line. At the same time, the requirements for cylindrical mirror parts are becoming higher and higher, especially in high-precision testing instruments and devices such as cavity plate of high-power laser resonator and long-distance off-line interferometer.

  • Double concave cylindrical lens is mainly used to change the design requirements of imaging size. For example, convert a point spot into a line spot, or change the height of the image without changing the image width. It can be used in linear detector lighting, bar code scanning, holographic lighting, optical information processing, computer and laser emission.
  • Hanzhong Borisun Optics Co., Ltd. provides customized production of fused quartz biconcave cylindrical lens custom production.

Technical parameters
Items Parameters
Material UV fused quartz (JGS1, Corning 7980), infrared fused quartz (jgs3, Corning 7978)
Radius of curvature ± 1mm - ± 50000mm ± 1%
Diameter 3mm-300mm ± 0.1mm
Center thickness tolerance ± 0.05mm (we can process to ± 0.01mm with high precision)
Center deviation 3′(we can process to 30 ″with high precision)
Surface accuracy λ/ 8 (high precision, we can process to 1 / 10λ)
Surface quality 40/20 (we can process to 10-5 with high precision)
Effective caliber ≥90%
Coating UV AR Coating 250-400nm or according to customer requirements
spectral curve

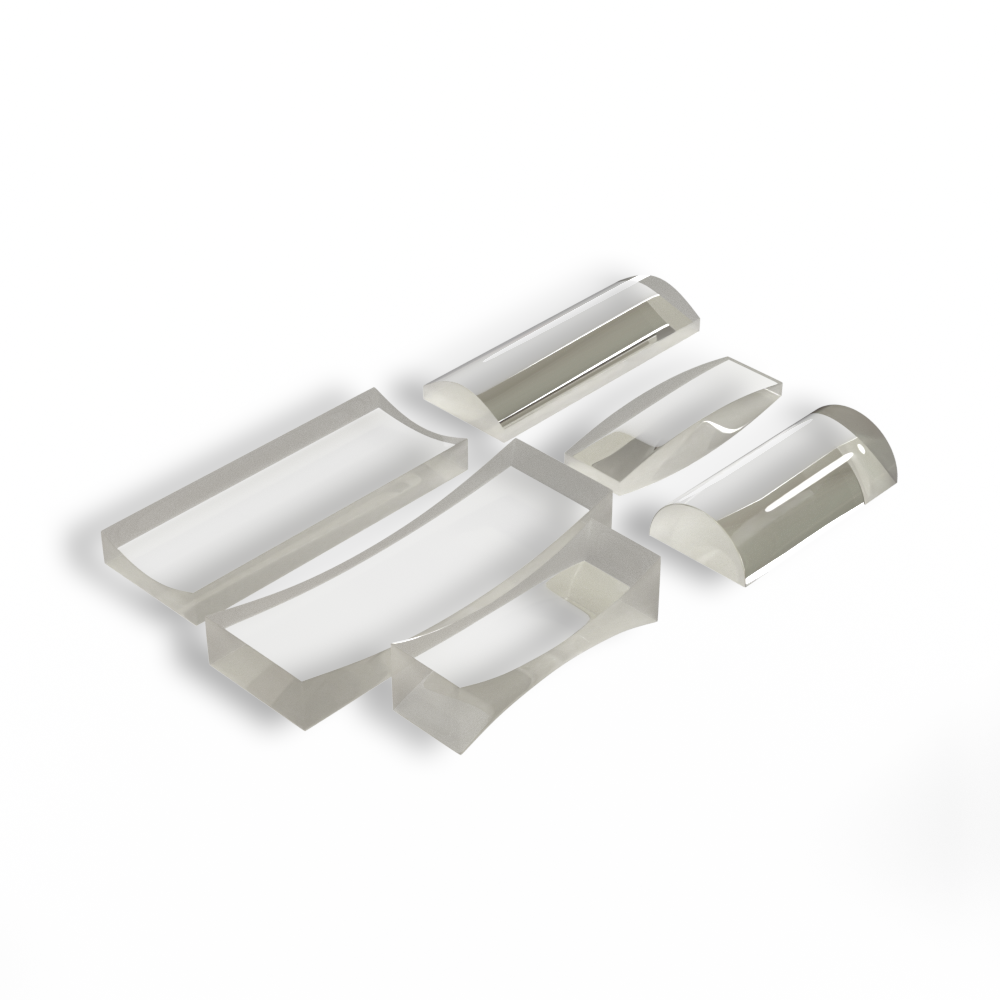

In addition, we have thousands of stock of K9 Plano convex cylindrical lens, Biconvex cylindrical lens, concave cylindrical lens, Meniscus cylindrical lens, and so on. The price is preferential and the quality is excellent, which can meet your demand for a small order.
