260nm narrow band filter

45 Laser line mirror tiff transp
Technical parameters
Center wavelength 260nm+-2nm
Incident angle 0° (according to customer requirements)
Half peak bandwidth 10nm+-2nm
Peak transmittance >15% (according to customer demand)
Product size 3mm-80mm (customizable)
Cut off wavelength 200nm-2000nm (according to the customer requirements)
Cut off depth >OD3-OD6 UV-NIR
Thickness According to your requirements

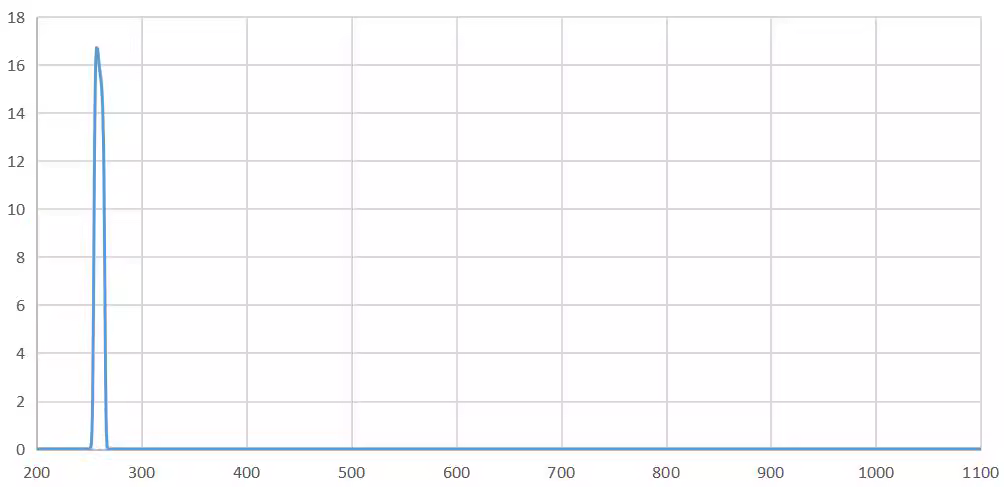

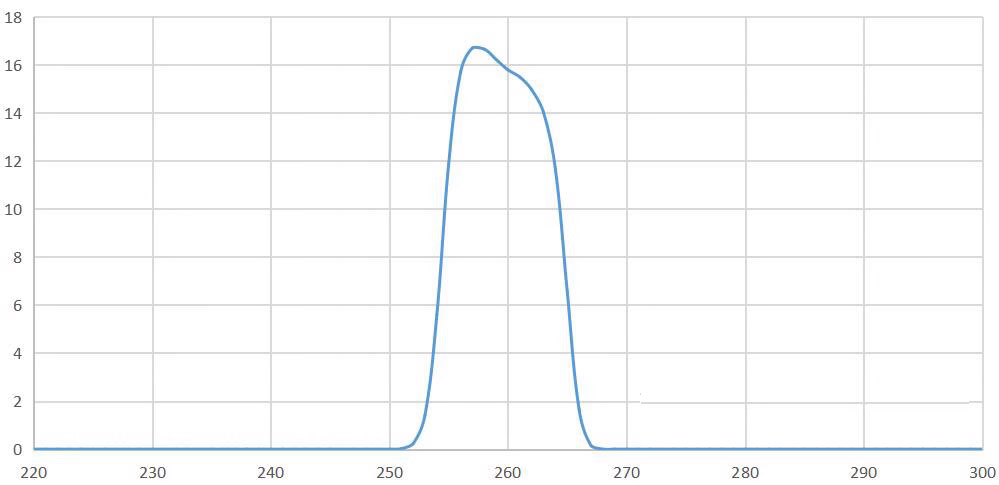

spectral curve
Related Products

In addition, We can customize the Optical Filters according to customer requirements or drawings.
