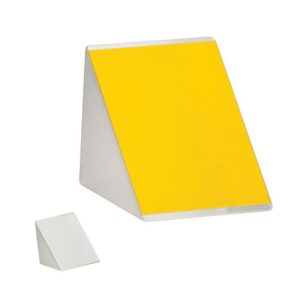

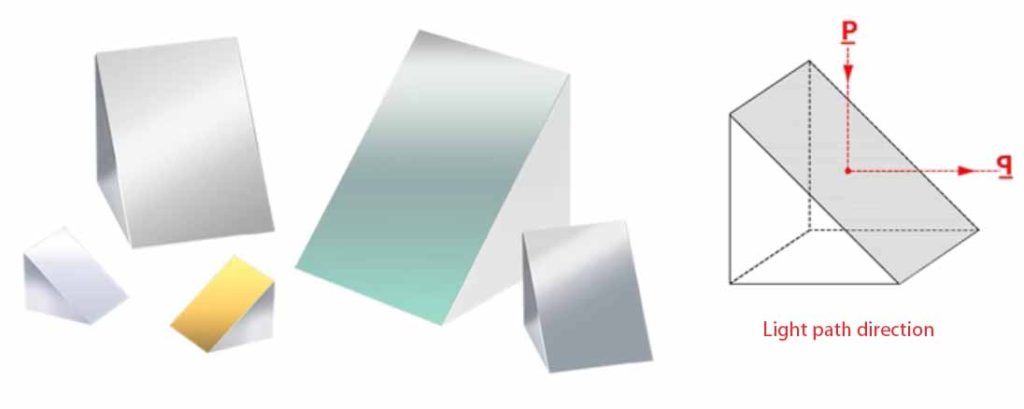

Right angle prisms are usually used to turn the optical path or deflect the image formed by the optical system by 90 °. According to the different orientation of the prism, the imaging can be consistent from left to right and reversed from top to bottom, which is different from left to right. Right angle prism can also be used in image combination, beam offset and other applications.
Borisun optics provides Right angle prisms without coating and with reflective coating. The options of reflective film include ordinary protective aluminum coating, protective ultraviolet reflective aluminum coating, protective silver coating, protective gold coating or dielectric high reflection coating.
Right Angle Prisms Customized Processing Technical Parameters
| Material substrate | HK9-L |
|---|---|
| Processable size | 3mm-200mm |
| Size tolerance | ±0.1 |
| Angle error | +-30″ |
| Pyramidal error | ＜10′ |
| Surface Quality | 60/40; 40/20; 20/10; 10/5 |
| Surface accuracy | λ/8, λ/6, λ/4 |
| Coating Customized design | Reinforced aluminum film, protective UV reflective aluminum film, protective silver film, protective gold film, dielectric high reflective film D02 (400~800nm), D03 (750~1250nm) |
Typical Reflective Curve for metallic mirror Coatings
UV Aluminum@250-700nm
Protect Aluminum@400-1200nm
Protect Sliver@400-12000nm
Protect Gold@2000-20000nm
Typical Reflective Curve for Plate Dielectric Coatings
Dielectric reflective coated @400-800nm
Dielectric reflective coated @750-1250nm
Inventory Parameters with Right Angle Prisms Mirrors
| Size (mm) | Angular error | Pyramidal error | Surface quality | Coated |
|---|---|---|---|---|
| 5*5*5 | +-30″ | ＜10′ | 60-40 | Metal coating or dielectric coating; 400-1250nm |
| 10*10*10 | +-30″ | ＜10′ | 60-40 | Metal coating or dielectric coating; 400-1250nm |
| 12.5*12.5*12.5 | +-30″ | ＜10′ | 60-40 | Metal coating or dielectric coating; 400-1250nm |
| 15*15*15 | +-30″ | ＜10′ | 60-40 | Metal coating or dielectric coating; 400-1250nm |
| 20*20*20 | +-30″ | ＜10′ | 60-40 | Metal coating or dielectric coating; 400-1250nm |
| 25*25*25 | +-30″ | ＜10′ | 60-40 | Metal coating or dielectric coating; 400-1250nm |
| 30*30*30 | +-30″ | ＜10′ | 60-40 | Metal coating or dielectric coating; 400-1250nm |
| 40*40*40 | +-30″ | ＜10′ | 60-40 | Metal coating or dielectric coating; 400-1250nm |
| 50*50*50 | +-30″ | ＜10′ | 60-40 | Metal coating or dielectric coating; 400-1250nm |
| 60*60*60 | +-30″ | ＜10′ | 60-40 | Silver coated + protection |
If you are interested and need custom Right Angle Prisms Mirrors or bulk orders, please contact our sales team: info@borisuns.com
