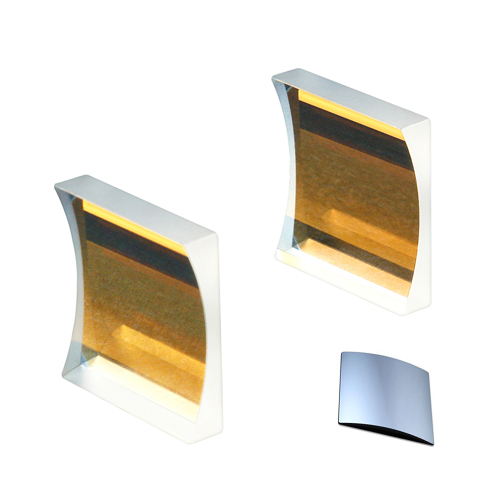

UV Aluminum Coated Plane Cylindrical mirror
PRODUCT CATEGORIES
INOUIRY
UV Aluminum Coated Plano concave cylindrical mirror, the reflecting surface is a cylindrical surface, and the parallel incident light reflected by the cylindrical surface can converge to a line with a positive focal length. The focal length of the plano concave cylindrical mirror is half of the radius of curvature of the cylindrical surface. Suitable for light focusing applications.
Borisun optics provides spherical mirrors without coating and with reflective film. The options of reflective film include ordinary protective aluminum coating, protective ultraviolet reflective aluminum coating, protective silver coating and protective gold coating.
Technical parameters with UV Aluminum coated plane concave cylindrical mirror
| Material substrate | H-K9L |
|---|---|
| Processable size | 3mm-1000mm |
| Diameter tolerance | ±0.02mm |
| Thickness tolerance | ±0.02mm |
| Surface Accuracy | 1λ or custom |
| Surface Quality | 60/40 |
| Back side | fine grinding or inspection polishing |
| Effective aperture | ＞90% |
| Coating Customized design | UV reflective aluminum film@250-700nm; Protective aluminum@400-1200nm |
spectral curve with Aluminum concave cylindrical mirror
Inventory Parameters with cylindrical Mirror
| Diameter (mm) | Focal Length (mm) | Center Thickness (mm) | Edge Thickness (mm) | Coated |
|---|---|---|---|---|
| 12.5/ 12.5*12.5 | 12.5; 25; 50; 75 | 3 | 3.79; 3.39; 3.2; 3.13 | UV aluminum@250-400nm; aluminum @400-1200nm |
| 25/ 25*25 | 25; 50; 75; 100; 150; 200; 250 | 6 | 7.59; 6.78; 6.52; 6.39; 6.26; 6.2; 6.16 | UV aluminum@250-400nm; aluminum @400-1200nm |
If you are interested and need custom Plano Concave Cylindrical Mirrors or bulk orders, please contact our sales team:
