FWHM 0.42nm 1550nm Ultra-narrow Band Filter
PRODUCT CATEGORIES
INOUIRY
1550nm FWHM 0.22nm ; 0.42nm; 0.8nm; 6nm OD4 Single Bandpass Ultra-Narrowband Filters, Used in narrow-linewidth lasers, quantum communication, and fiber optic communication.
Technical parameters with Ultra Narrowband Filter
| Central wavelength | 1550nm |
|---|---|
| FWHM | 0.22nm; 0.42nm; 0.8nm... |
| Peak transmittance | ＞90% |
| Cutoff range | custom |
| Average cutoff depth | ＞OD4 |
| Angle of incidence | 0° |
| Surface quality | 60/40 |

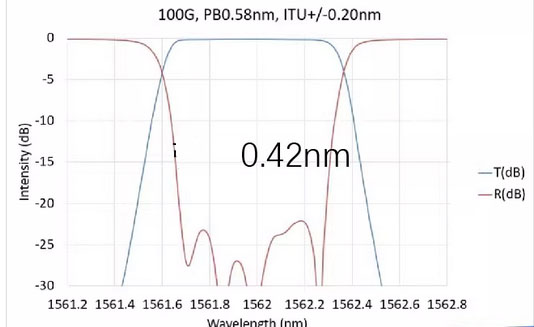

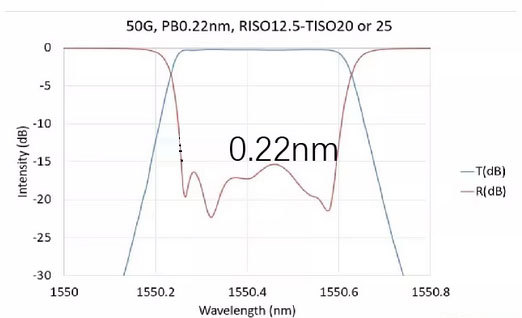

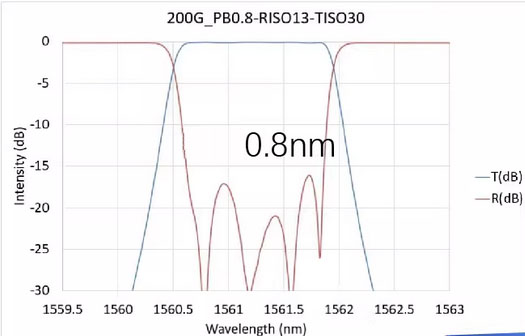

Transmission Curve with 1550nm Ultra Narrow Band Optical Filter
Inventory Parameters with 1550nm Ultra Narrow Band Optical Filter
In stock: D25.4mm, customizable
If you need custom Optical Filters or bulk orders, please contact our sales team:
