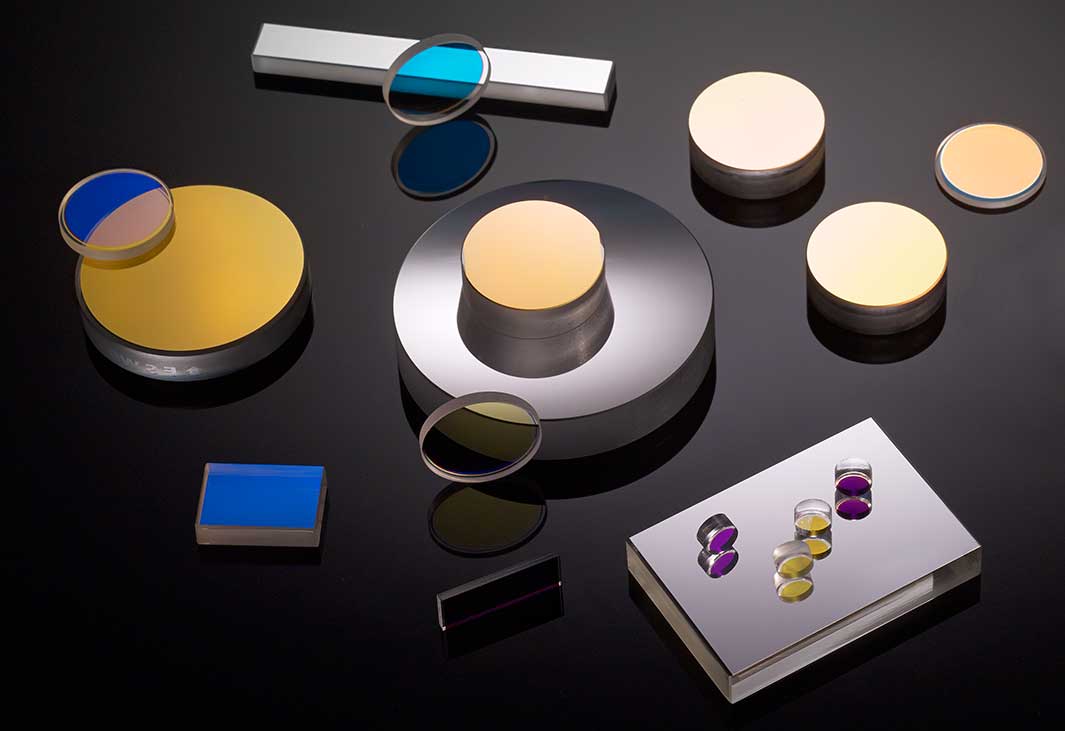

Fused Quartz Flat Mirror
PRODUCT CATEGORIES
INOUIRY

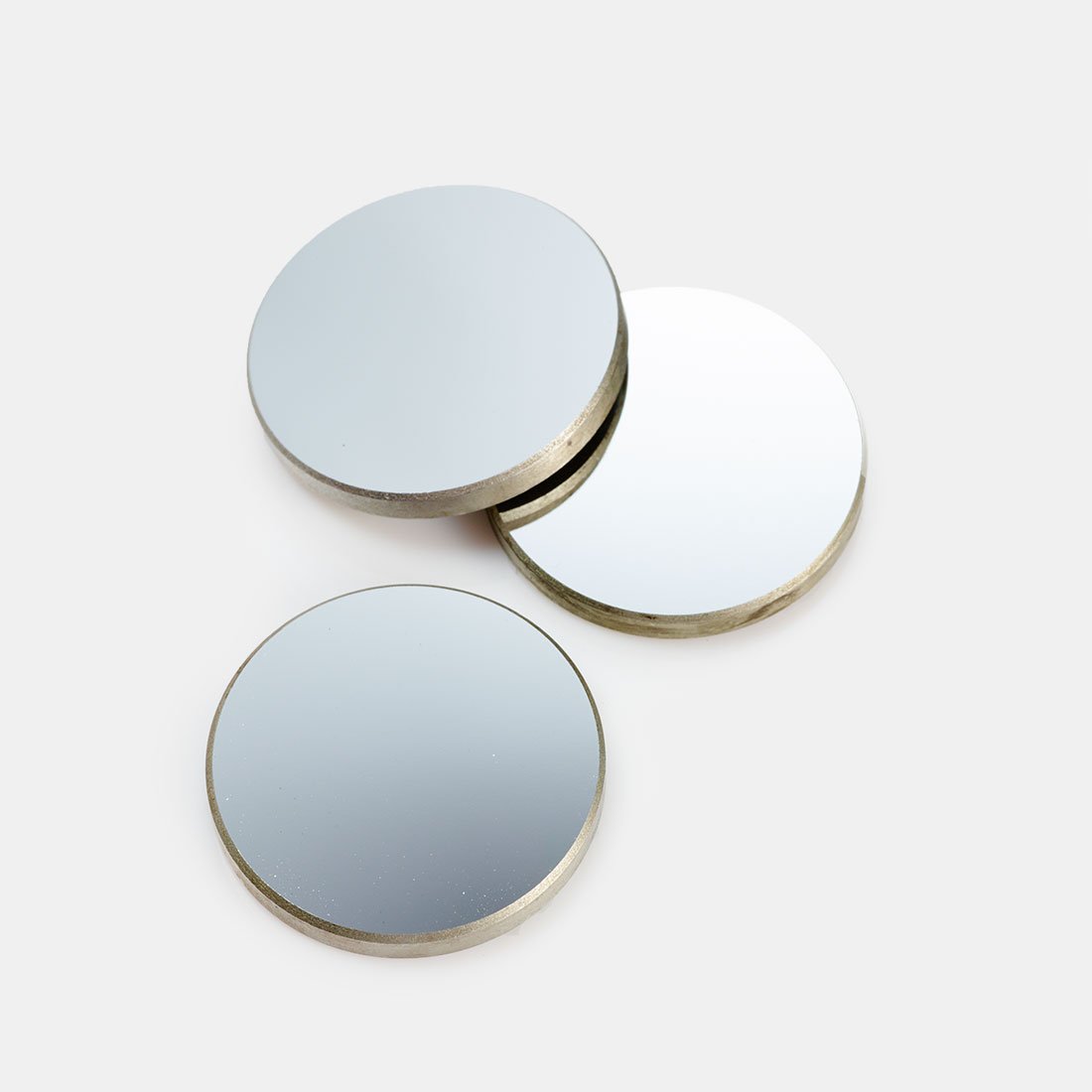

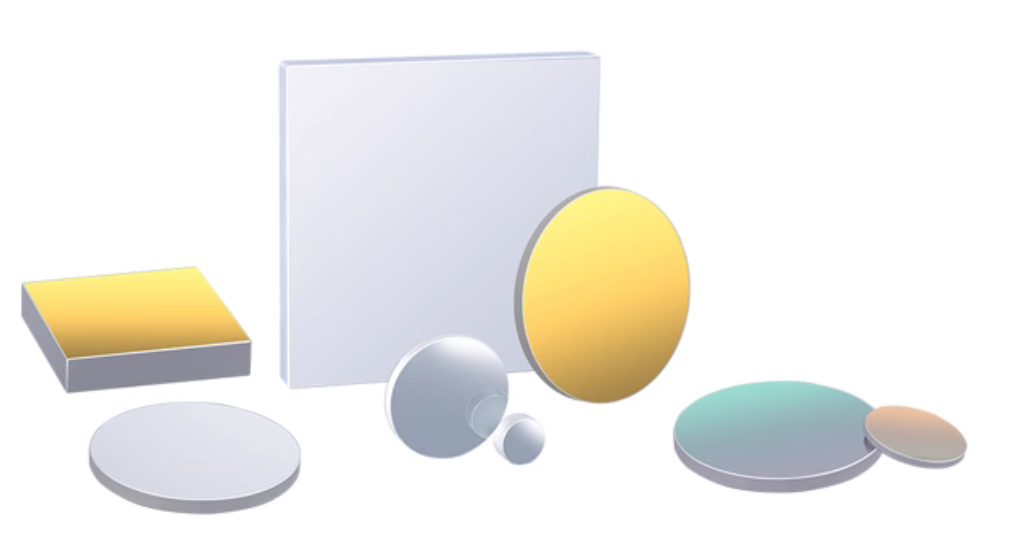

Fused silica high-precision plane mirror is a plane. It is a mirror that can be used in a variety of applications, including beam deflection, interferometry, or as an optical component in an imaging system.
The important parameters of a plane mirror are: surface shape and reflectivity. High surface accuracy can reduce the amount of light loss caused by dispersion.
We provide uncoated and reflective mirrors. The reflective film options include ordinary reinforced aluminum film@400-1200nm, protective UV reflective aluminum film@250-700nm, protective silver film@400-12000nm, protective gold film@2000-20000nm, dielectric high reflective film D01@350-400nm, dielectric high reflective film D02@400-800nm, dielectric high reflective film D03@750-1250nm, and dielectric high reflective film D04@1200-1800.
Technical parameters with quartz mirror planr
| Material | Fused Silica |
|---|---|
| Parallelism | <3′ |
| Thickness tolerance | ±0.2 mm |
| Back | Fine grinding |
| Surface quality | 60/40- 10/5 |
| Surface accuracy | λ/4- λ/10@633 nm |
| Dimension error | +0.0/-0.1 mm |
| Chamfer | Protective chamfer 0.2~0.5mm×45° |
| Coating | Strengthened aluminum film, protective UV reflective aluminum film, protective silver film, protective gold film, dielectric high reflective film D01, D02, D03, D04 |
spectral curve with quartz plane mirror

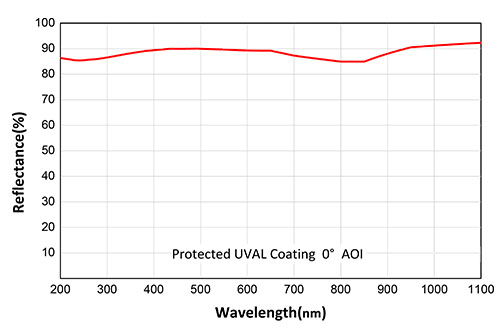

UV Aluminum @250-700nm
Reinforced aluminum @400-1200nm

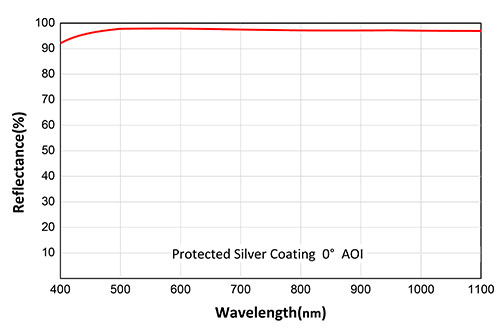

Protect Sliver @400-12000nm

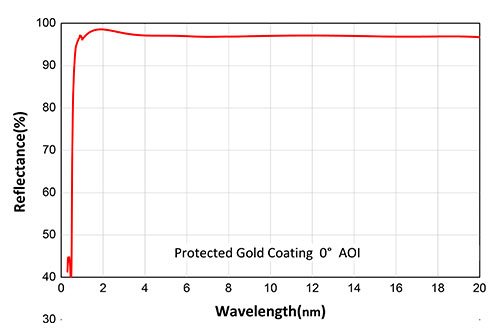

Protect Glod @2000-20000nm
DO1 @350-400nm
DO2 @400-800nm
DO3 @750-1250nm
DO4 @1200-1800nm
Inventory parameters With Fused Quartz Plane Optical Glass Mirror
| Diameter (mm) | Thickness (mm) | Surface Accuracy | Surface Quality | Coated |
|---|---|---|---|---|
| 5 | 2 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
| 6.3 | 2 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
| 10 | 2 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
| 12.5 | 6 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
| 12.7 | 6 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
| 20 | 6 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
| 25 | 6 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
| 30 | 10 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
| 30 | 10 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
| 38 | 10 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
| 50 | 10 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
| 12.5*12.5 | 6 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
| 25*25 | 6 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
| 50*50 | 10 | λ/4 or λ/10 | 60/40 or 10-5 | Aluminum; Silver; Gold; D01; D02; D03; D04 |
