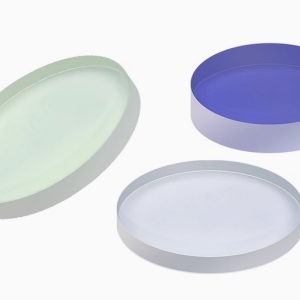

Dual Wavelength Laser Reflector
PRODUCT CATEGORIES
INOUIRY
The reflective surface of the dual laser wavelength dielectric high reflector is a plane, which is a reflector that can be used in a variety of applications, including beam deflection, interferometry, or as an optical component in an imaging system.
The important parameters of a plane reflector are: surface shape and reflectivity. High surface accuracy can reduce the amount of light loss caused by dispersion.
Technical parameters
| Dimension tolerance | +0/-0.2mm |
|---|---|
| Thickness tolerance | ±0.2mm |
| Surface quality | 60/40 |
| Clear aperture | >90% |
| Surface Accuracy | <λ/10@632.8nm per 25mm (before coating) |
| Angle Protective | <0.5mmx45° |
| Coating | One side is coated with dielectric high-reflective film, Ravg>99.5% (Ravg＞99%@350-400nm); the other side is finely ground or tested and polished |
| Damage threshold | >5J/cm², 20ns, 20Hz, @1064nm |

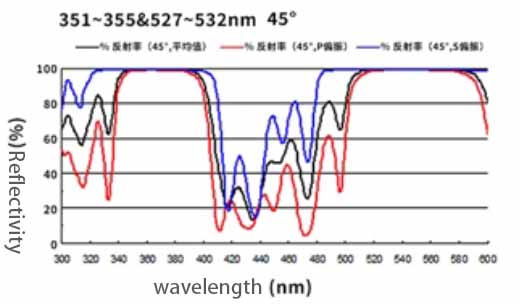

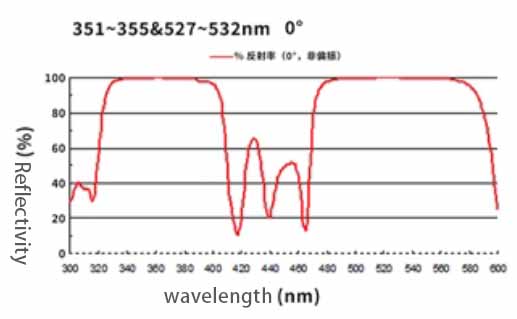

351nm - 355nm & 527nm - 532nm Dual Wavelength Laser Mirror

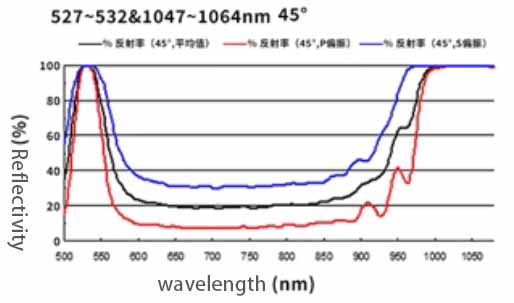

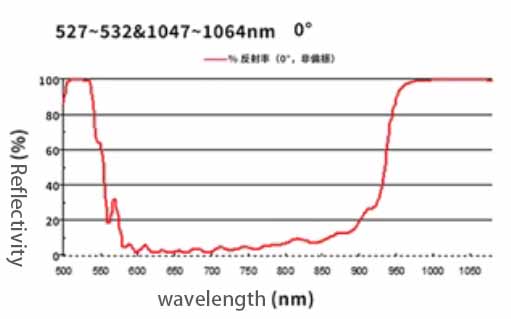

527nm - 532nm & 1047nm - 1064nm Dual Wavelength Laser Mirror

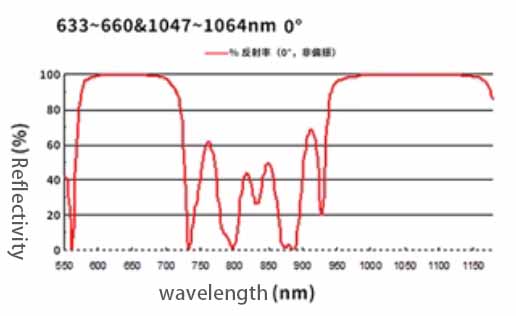

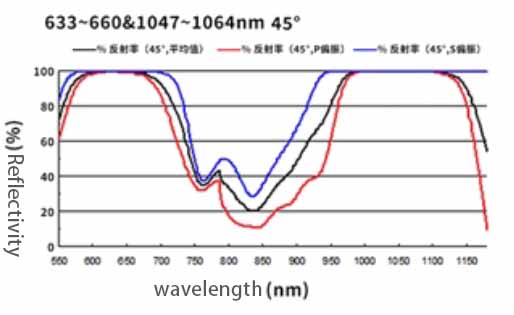

633nm - 660nm & 1047nm - 1064nm Dual Wavelength Laser Mirror
In Stock Parameters
| Wavelength (nm) | Wavelength (nm) | Wavelength (nm) | Diameter (mm) | Thickness (mm) | Incident Angle | Material |
|---|---|---|---|---|---|---|
| 355nm & 532nm | 532nm & 1064nm | 633nm & 1064nm | 12.7/ 20/ 25.4/ 50.8 | 3/ 4/ 6.35 | 0° or 45° | H-K9L |
The above parameters are for reference only. For detailed Optical mirrors parameters or customized, please consult our sales team:
