Laser Flat Windows are parallel plane plates that protect electronic sensors or detectors without blocking the line of sight. The windows do not change the magnification of the system.
Laser Flat Windows are quite different from ordinary optical windows in terms of performance. Laser Flat Windows are mainly used for: laser cutting head protection, optical observation windows, laser protection windows, etc.
BORISUN provides laser flat windows with various sizes ranging from Φ5mm to Φ50.8mm, base materials are fine annealed K9 optical glass and UV fused quartz, wavelength range covers 266nm to 1064nm, surface shape is λ/10, parallelism <5″. In addition to the protection function, laser flat windows must also ensure high transmittance and excellent transmission wavefront.
Customization Parameters
| Material: | fine annealed K9 optical glass and UV fused quartz | Diameter: | 3-600mm+0.0/-0.1mm |
|---|---|---|---|
| Shape: | Round, square, special shape | Surface Accuracy: | λ/8- λ/20 |
| Surface Quality: | 10-5~60-40 | Parallel Difference: | ＜5″- 30″ |
| Bevel: | 0.2mm*45° | MOQ: | 5PCS |
Inventory Parameters
| Diameter (mm) | Thickness (mm) | Surface Accuracy | Surface Quality |
|---|---|---|---|
| 5 | 2 | λ/10 | 20/10 |
| 10 | 2 | λ/10 | 20/10 |
| 12.5 | 3 | λ/10 | 20/10 |
| 12.7 | 3 | λ/10 | 20/10 |
| 20 | 4 | λ/10 | 20/10 |
| 25 | 6 | λ/10 | 20/10 |
| 25.4 | 6 | λ/10 | 20/10 |
| 30 | 6 | λ/10 | 20/10 |
| 38.1 | 10 | λ/10 | 20/10 |
| 50 | 10 | λ/10 | 20/10 |
| 50.8 | 10 | λ/10 | 20/10 |
Coating options:

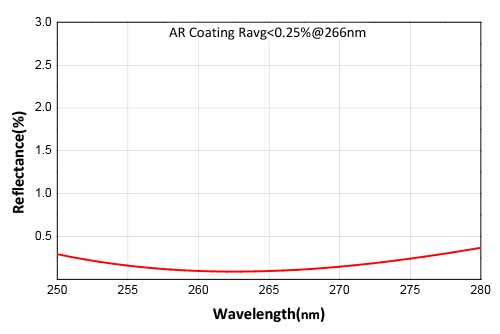

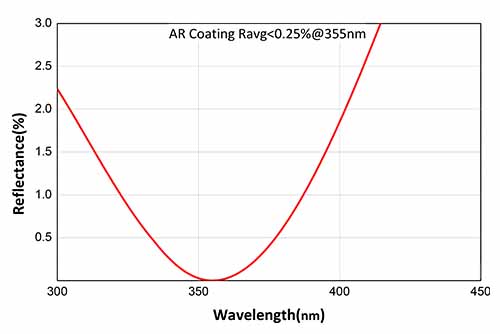

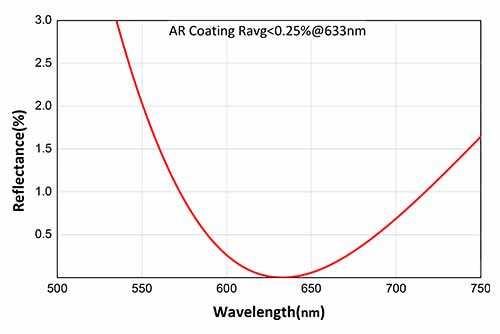

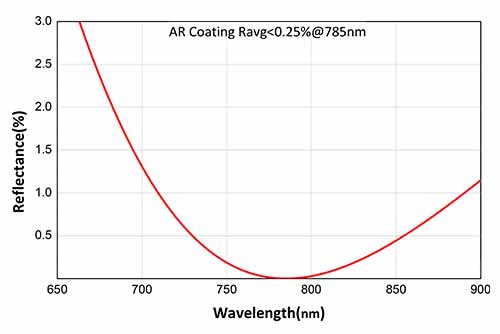

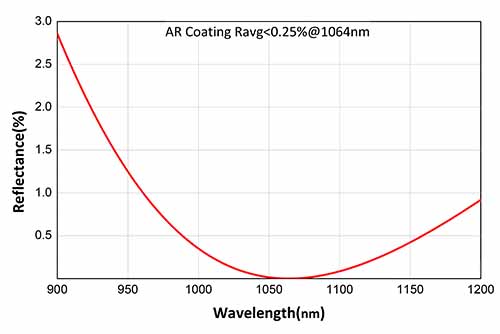

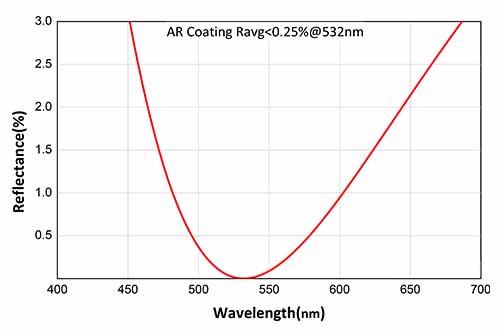

AR Coating Ravg＜0.25%@266nm; AR Coating Ravg＜0.25%@355nm; AR Coating Ravg＜0.25%@532nm; AR Coating Ravg＜0.25%@633nm; AR Coating Ravg＜0.25%@785nm; AR Coating Ravg＜0.25%@1064nm.
We can customize laser plane windows that meet your requirements according to your needs.
