Concave Cylindrical Mirrors
PRODUCT CATEGORIES
INOUIRY

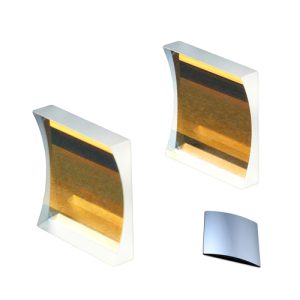

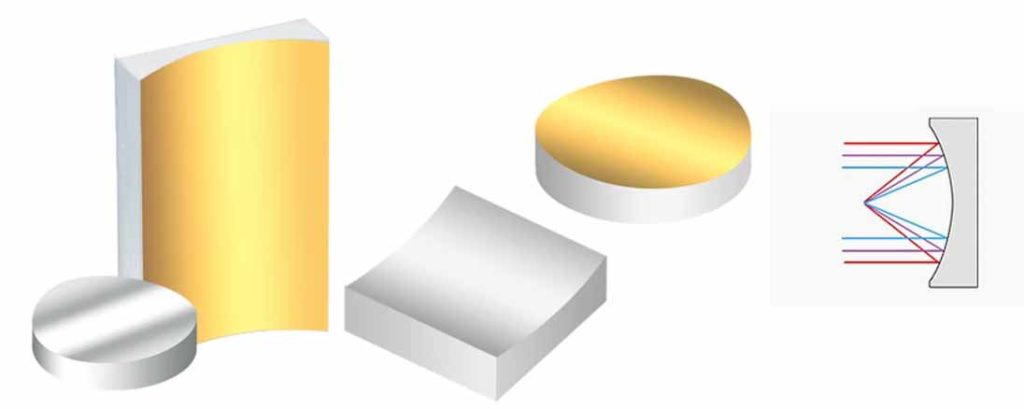

Plano concave cylindrical mirrors, the reflecting surface is a cylindrical surface, and the parallel incident light reflected by the cylindrical surface can converge to a line with a positive focal length. The focal length of the plano concave cylindrical mirror is half of the radius of curvature of the cylindrical surface. Suitable for light focusing applications.
Borisun optics provides spherical mirrors without coating and with reflective film. The options of reflective film include ordinary protective aluminum coating, protective ultraviolet reflective aluminum coating, protective silver coating, protective gold coating or dielectric high reflection coating.
Metal Coated Mirrors
UV Aluminum@250-700nm
Protect Aluminum@400-1200nm
Protect Sliver@400-12000nm
Protect Gold@2000-20000nm
Dielectric Coated
Dielectric reflective coated @350-400nm
Dielectric reflective coated @400-800nm
Dielectric reflective coated @750-1250nm
Dielectric reflective coated @1200-1800nm
Customization Parameters with Plano Concave Cylindrical Reflector
| Material substrate | glass, metal, microcrystalline |
|---|---|
| Processable size | 3mm-1000mm |
| Diameter tolerance | ±0.02mm |
| Thickness tolerance | ±0.02mm |
| Surface Accuracy | λ/10, λ/8, λ/6 |
| Surface Quality | 60/40; 40/20; 20/10; 10/5 |
| Eccentricity | ±30 Arc Seconds |
| Effective aperture | ＞90% |
| Coating Customized design | Strengthened aluminum film, protective UV reflective aluminum film, protective silver film, protective gold film,Dielectric high reflective film D01, D02, D03, D04 |
Inventory Parameters
| Diameter (mm) | Focal Length (mm) | Center Thickness (mm) | Edge Thickness (mm) | Coated |
|---|---|---|---|---|
| 12.5/ 12.5*12.5 | 12.5; 25; 50; 75 | 3 | 3.79; 3.39; 3.2; 3.13 | Metal coating or dielectric coating; 250nm-20000nm |
| 25/ 25*25 | 25; 50; 75; 100; 150; 200; 250 | 6 | 7.59; 6.78; 6.52; 6.39; 6.26; 6.2; 6.16 | Metal coating or dielectric coating; 250nm-20000nm |
If you are interested and need custom Plano Convex Cylindrical Mirrors or bulk orders, please contact our sales team: info@borisuns.com
We will serve you immediately！
